• Thin-bezel auto-dimming rearview mirror with HomeLink® universal transceiver
• Smart Key System with Push Button Start; remote keyless entry with lock, unlock, panic, tailgate release and remote illuminated entry
• Power tilt/slide panoramic roof with power sunshade
• Power vertical rear window with defogger and privacy glass
• Acoustic laminated windshield
• Power windows with one-touch auto up/down and jam protection
• Front and rear LED maplights
• Illuminated center console storage bin and glove box
• TRD Pro "TOYOTA" heritage instrument panel badge
• Soft-touch instrument panel, center console and door surfaces
• TRD red-striped leather-wrapped shift knob
• Multi-Terrain Monitor (MTM) with cameras
• Backup camera with projected path
• Drive Mode Select (DMS) switch and dial
• Qi-compatible wireless smartphone charging
• Rear-seat air vents
• Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
• Front 12V auxiliary power outlet
• 120V/400W rear-seat AC power outlet
• Overhead console with rear window control, sunglasses storage and Safety Connect®
• Electronic locking fuel door
• Front and rear assist grips

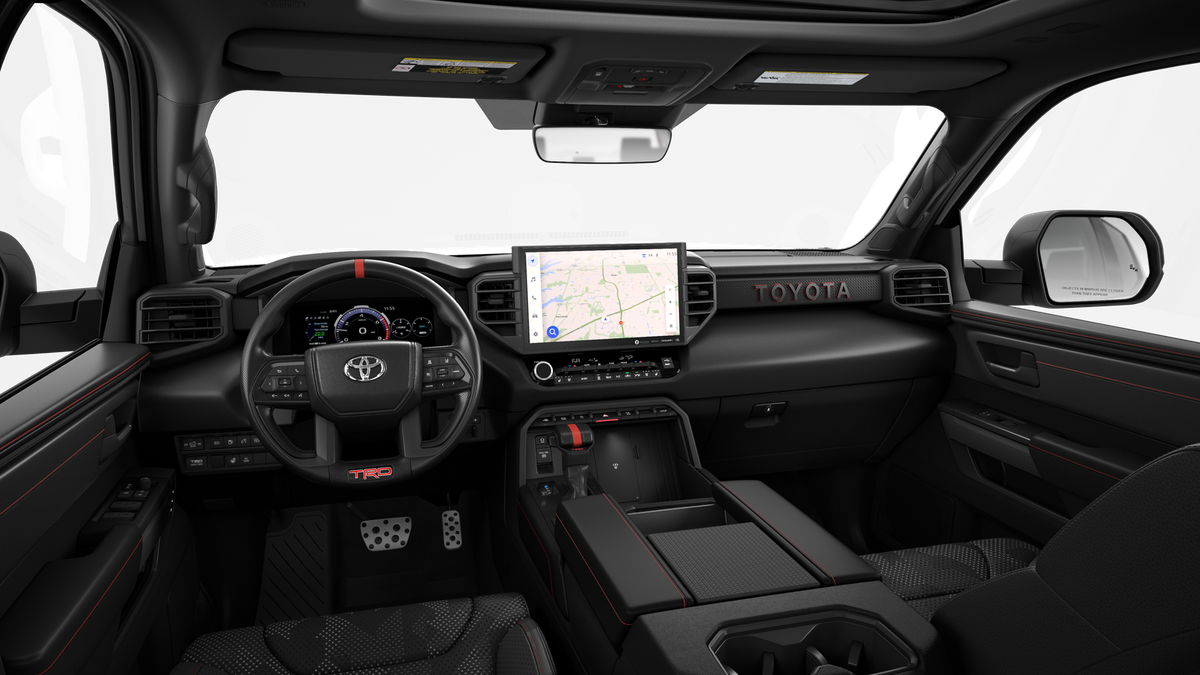

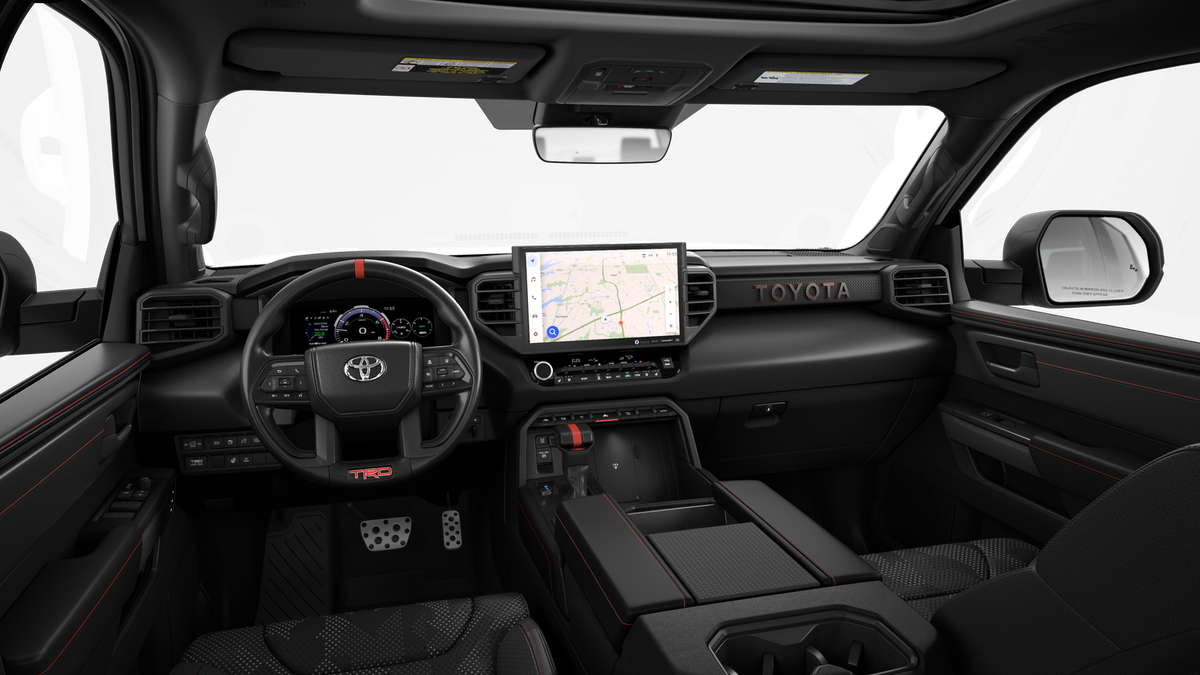

• 12.3-in. digital meter with selectable gauge display screens and fuel economy, Driver Assist, vehicle/trip information, and warning messages

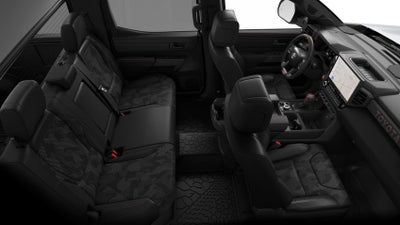

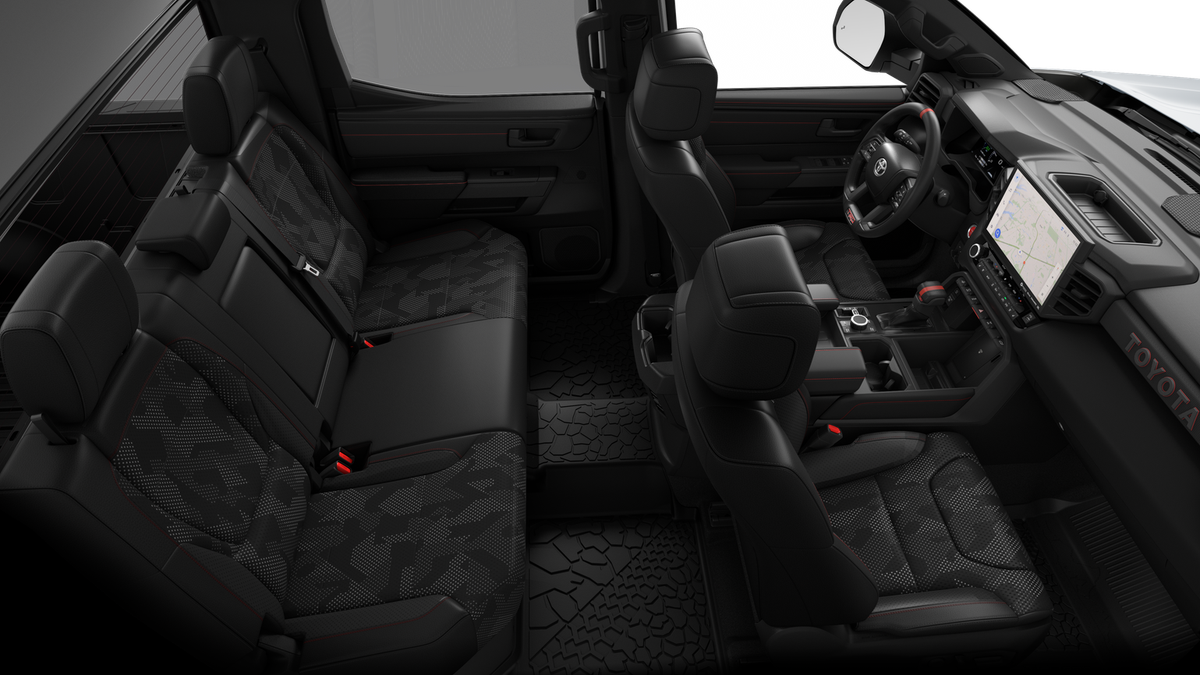

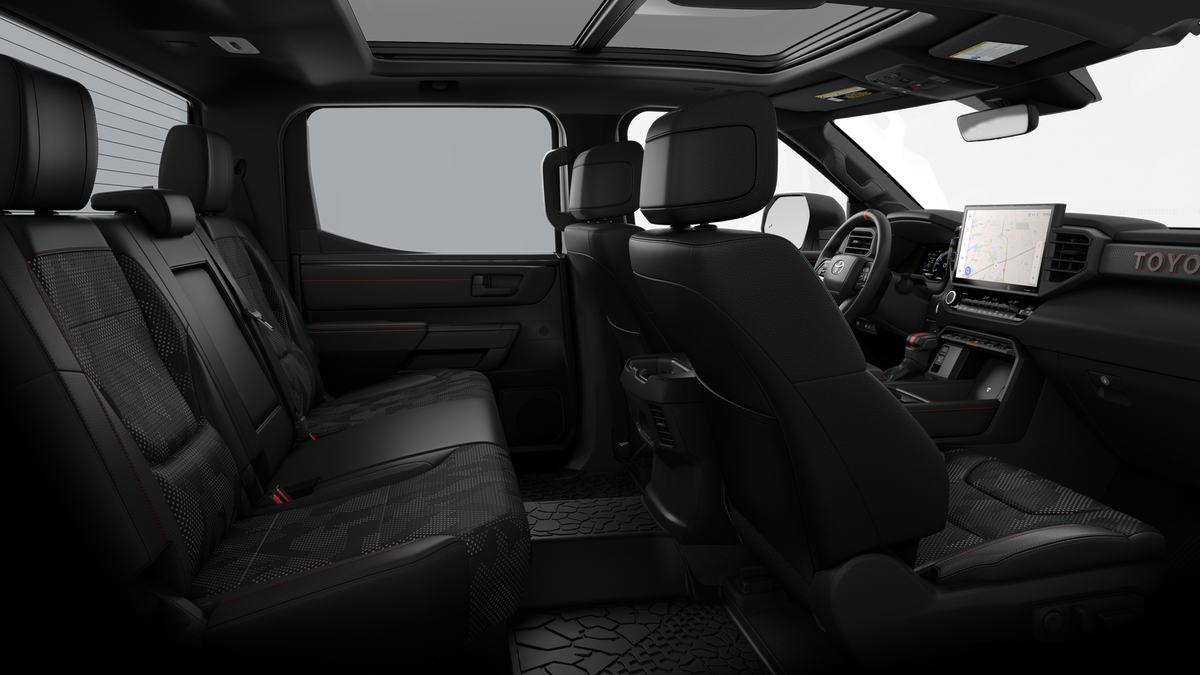

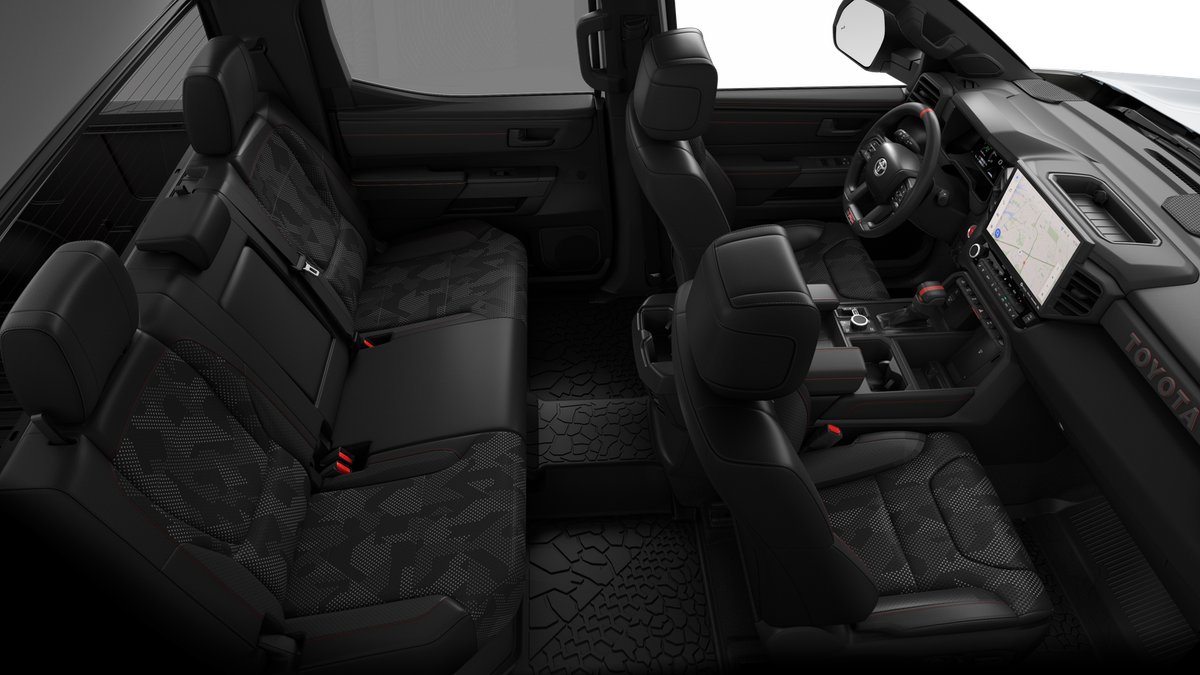

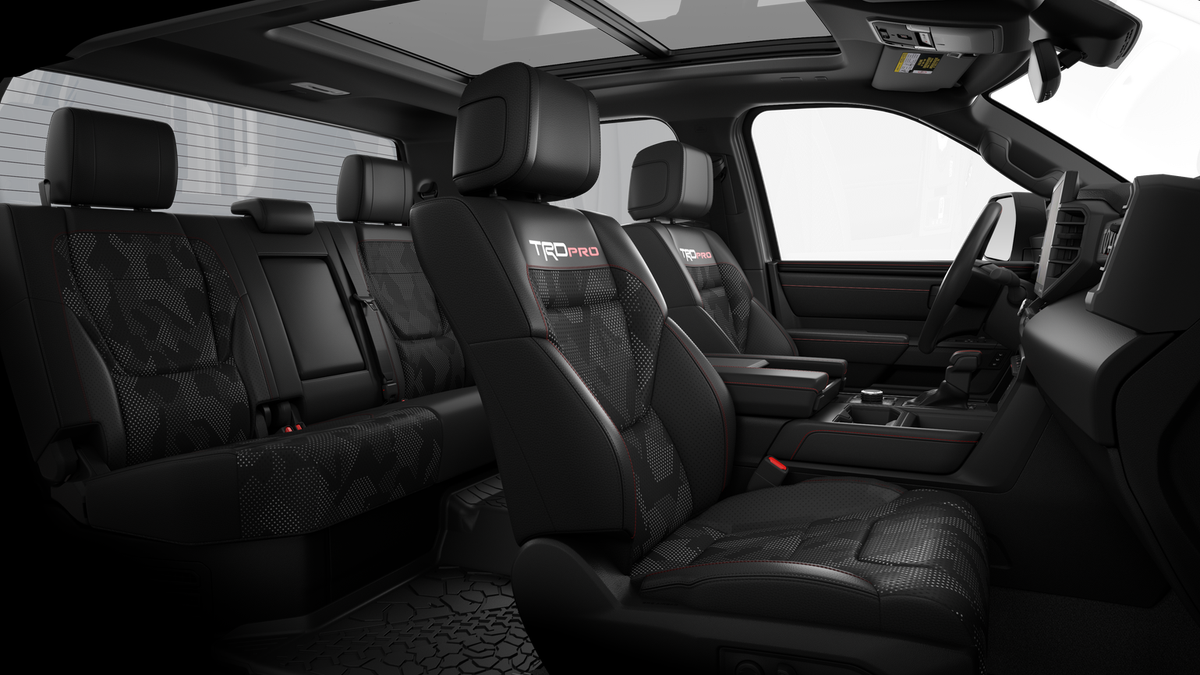

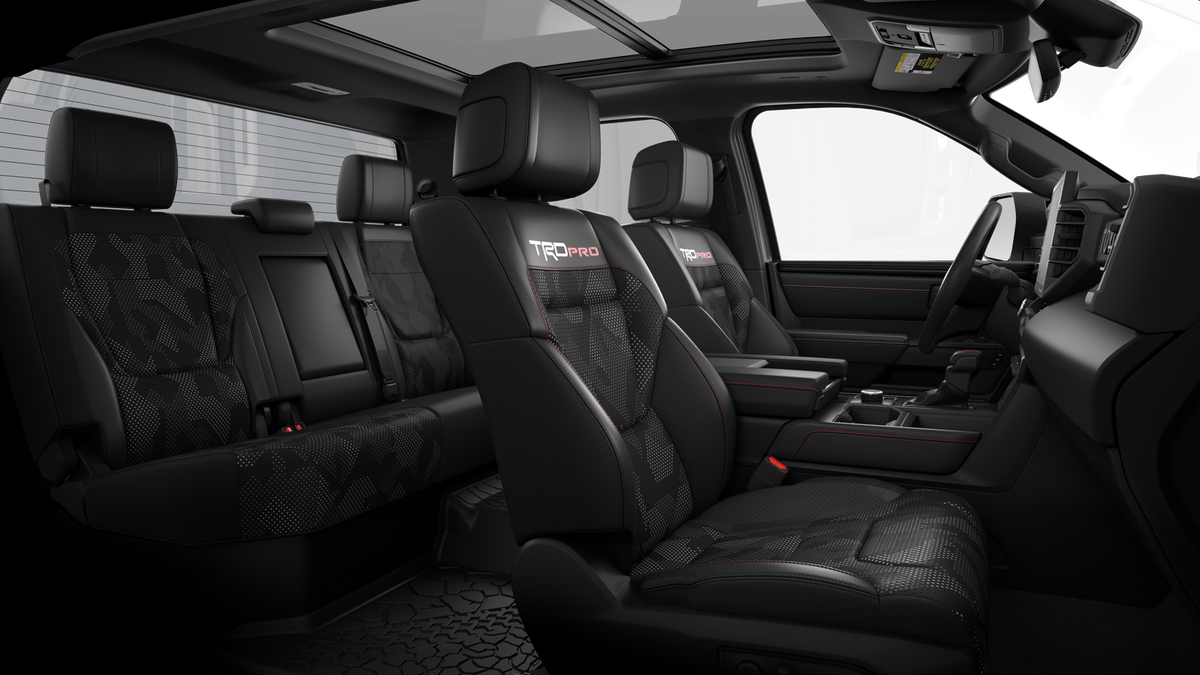

• TRD Pro SofTex®-trimmed seats with contrast stitching and technical-camo-pattern inserts; 8-way power-adjustable driver and front passenger seats with power-adjustable lumbar support
• Driver's-seat memory function
• Heated front seats
• Heated and ventilated front seats

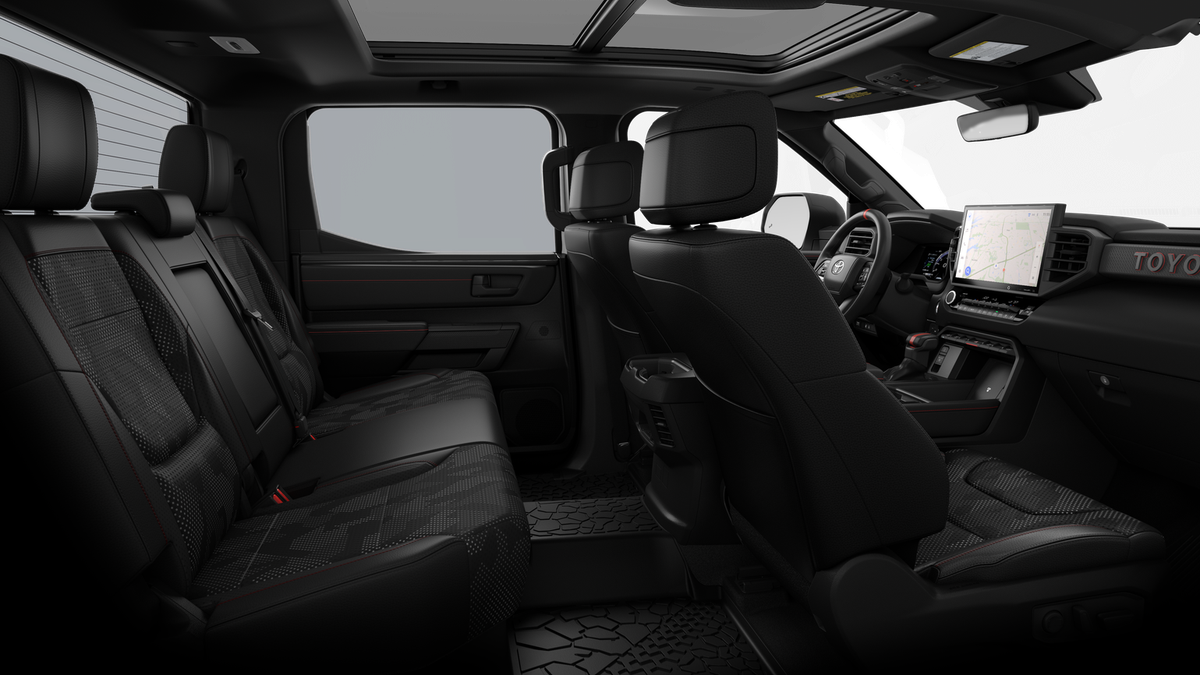

• 60/40 split, folding rear seat with center armrest and cup holders
• Dual zone automatic climate control with air filtration and individual temperature settings for driver and front passenger with S-Flow
• Aluminum sport pedals
• TRD Pro all-weather floor mats
• TRD leather-wrapped manual tilt/telescopic steering wheel with TRD badge, red center stripe, and phone, audio, display/infotainment, and Driver Assist controls
• 12-speaker JBL® Premium Audio including subwoofer and amplifier

• Ignition System: Conventional 12V starter
• Fuel System: D-4ST direct-injection and port-injection fuel system
• Intake: Twin turbochargers with electric wastegate valve actuators and water-cooled intercooler
• Off-Road: Multi-Terrain Select (MTS), Crawl Control (CRAWL) and Downhill Assist Control (DAC)
• Off-Road: Multi-Terrain Monitor (MTM) with selectable front, side and rear views
• Off-Road: TRD aluminum front skid plate
• Exhaust System: Stainless steel exhaust system
• Towing: Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector
• Towing: Integrated Trailer Brake Controller (ITBC) with Multi-Information Display (MID) screen and trailer brake type, gain and manual trailer brake output controls
• Towing: Trailer-Sway Control (TSC)
• HV Electric Motor: Parallel hybrid system with permanent magnet synchronous motor/generator
• HV Electric Motor: Electric motor power: 48 hp (36 kW)
• HV Electric Motor: Electric motor torque: 184 lb.-ft. (250 N•m)
• HV Battery: 288V sealed Nickel-Metal Hydride (Ni-MH) battery with 1.87 kWh capacity
• Drivetrain: 4WDemand part-time 4-Wheel Drive with electronically controlled 2-speed transfer case (high/low ranges) and Automatic Limited-Slip Differential (Auto LSD)
• Drivetrain: Electronically controlled locking rear differential
• Drive Modes: Eco, Normal and Sport driving modes
• Drive Modes: TOW/HAUL driving modes
• Body/Frame: Fully boxed high-strength steel ladder frame
• Body/Frame: Hydraulic cab mounts
• Body/Frame: Ultra-high-strength steel cabin construction with aluminum hood and front door panels
• Body/Frame: Active grille shutters
• Suspension: Independent double-wishbone front suspension; coil spring multi-link rear suspension
• Suspension: TRD Pro off-road suspension with 1.1-in. front lift, 2.5-in. FOX® Internal Bypass coil-overs and rear remote-reservoir shocks, and TRD Pro front stabilizer bar
• Steering: Electric Power Steering (EPS); power-assisted rack-and-pinion
• Brakes: Power-assisted, ventilated 13.9-in. front disc brakes with opposed dual-piston brake calipers; ventilated 13.6-in. rear disc brakes with single-piston calipers
• Brakes: Electronically Controlled Braking (ECB) system with integrated regenerative braking
• Brakes: Electric Parking Brake (EPB)

• Toyota Safety Sense™ 2.5 (TSS 2.5) Pre-Collision System with Pedestrian Detection (PCS w/PD), Full-Speed Range Dynamic Radar Cruise Control (DRCC), Lane Departure Alert with Steering Assist (LDA w/SA), Lane Tracing Assist (LTA), Automatic High Beams (AHB), Road Sign Assist (RSA)
• 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
• Blind Spot Monitor (BSM) with Rear Cross-Traffic Alert (RCTA) and Trailer Merge Warning
• Front and Rear Parking Assist with Automatic Braking
• Eight total airbags, including driver and passenger side, knee and curtain airbags
• LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard second-row rear seats
• Child-protector rear door locks and power window lockout control
• Star Safety System™ — includes Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop Technology® (SST)
• Drive-Start Control (DSC)
• Hill Start Assist Control (HAC)
• Tire Pressure Monitor System (TPMS)
• Driver and front passenger active headrests

50 State Emissions ($0)

• 50 State Emissions

TRD Pro Package ($0)

• TRD Pro Package

Bed Step ** ($455)

Non-Skid Spray-On Bed Liner** ($599)

TRD Cast Aluminum Running Board ** ($1,219)

Wheel Locks** ($125)

Vehicle Protection Package: ($399)

Lemon Law Book ($0)

Vehicle Fueling ($0)

PDS - Pre Delivery Services ($0)

Owner's Portfolio ($0)

• 50 STATE EMISSIONS

  TRD PRO PACKAGE

  BED STEP (TMS)

  TRD CAST ALUMINUM RUNNING BOARD (TMS)

  WHEEL LOCKS (TMS)

• Mileage
• Fuel Economy Est-Combined (MPG): 22 (2025)
• EPA Fuel Economy Est - City (MPG): 20 (2025)
• EPA Fuel Economy Est - Hwy (MPG): 24 (2025)
• Traction Battery
• Gross Traction Battery Capacity (kWh): 1.9
• Weight Information
• Base Curb Weight (lbs): 6015
• Gross Vehicle Weight Rating Cap (lbs): 7615
• Gross Combined Wt Rating (lbs): 17600
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11175
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1118
• Maximum Trailering Capacity (lbs): 11175
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Multi-Link
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 3.31
• Axle Ratio (:1) - Rear: 3.31
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Size: P285/65HR18
• Rear Tire Size: P285/65HR18
• Spare Tire Size: Full-Size
• Wheels
• Front Wheel Size (in): 18 X 8
• Rear Wheel Size (in): 18 X 8
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Forged Aluminum
• Rear Wheel Material: Forged Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 49.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32.2
• Exterior Dimensions
• Wheelbase (in): 145.7
• Length, Overall (in): 233.6
• Width, Max w/o mirrors (in): 80.2
• Height, Overall (in): 78
• Ground Clearance, Front (in): 9
• Ground Clearance, Rear (in): 9
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 65.6
• Cargo Box Width @ Top, Rear (in): 58.7
• Cargo Box Width @ Floor (in): 58.7
• Cargo Box Width @ Wheelhousings (in): 48.7
• Cargo Box (Area) Height (in): 20.9
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.3
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 65
• Front Hip Room (in): 62.6
• Second Head Room (in): 36.9
• Second Leg Room (in): 41.6
• Second Shoulder Room (in): 62.4
• Second Hip Room (in): 60.5
• Summary

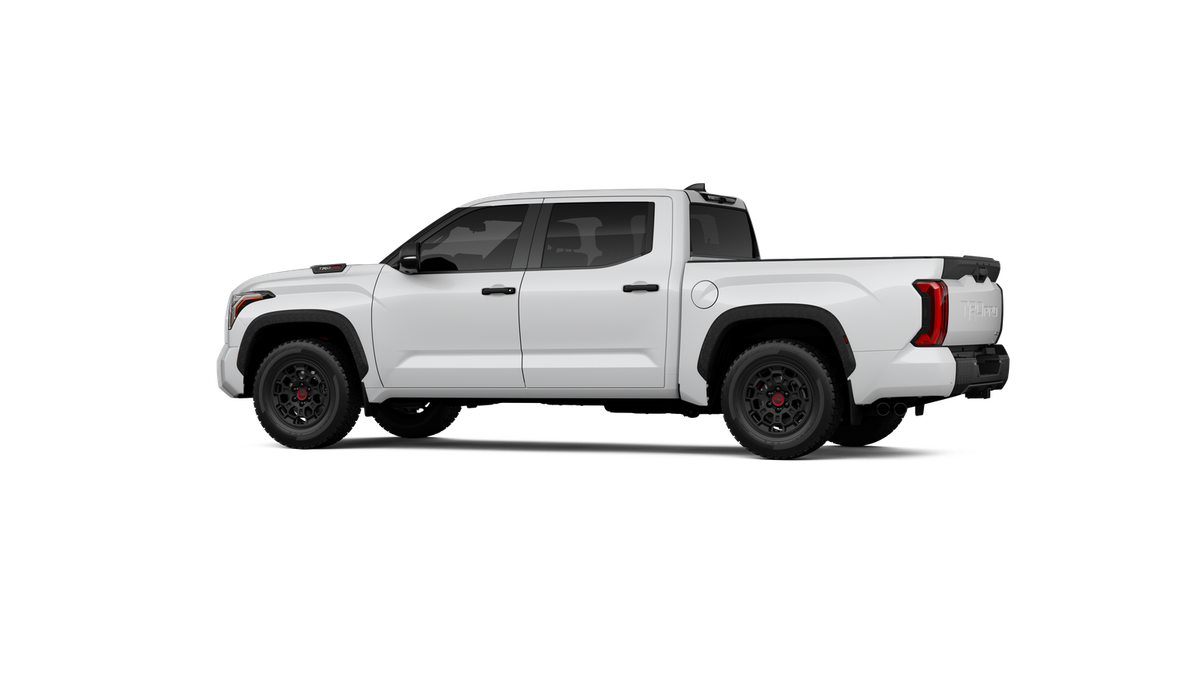

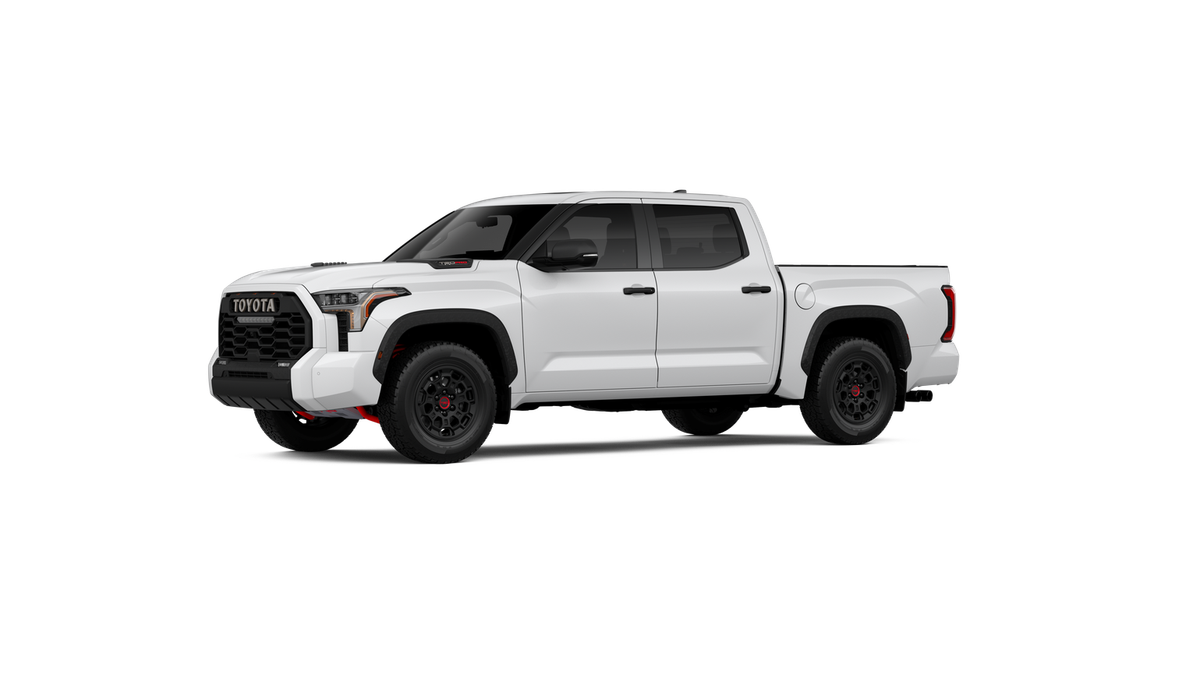

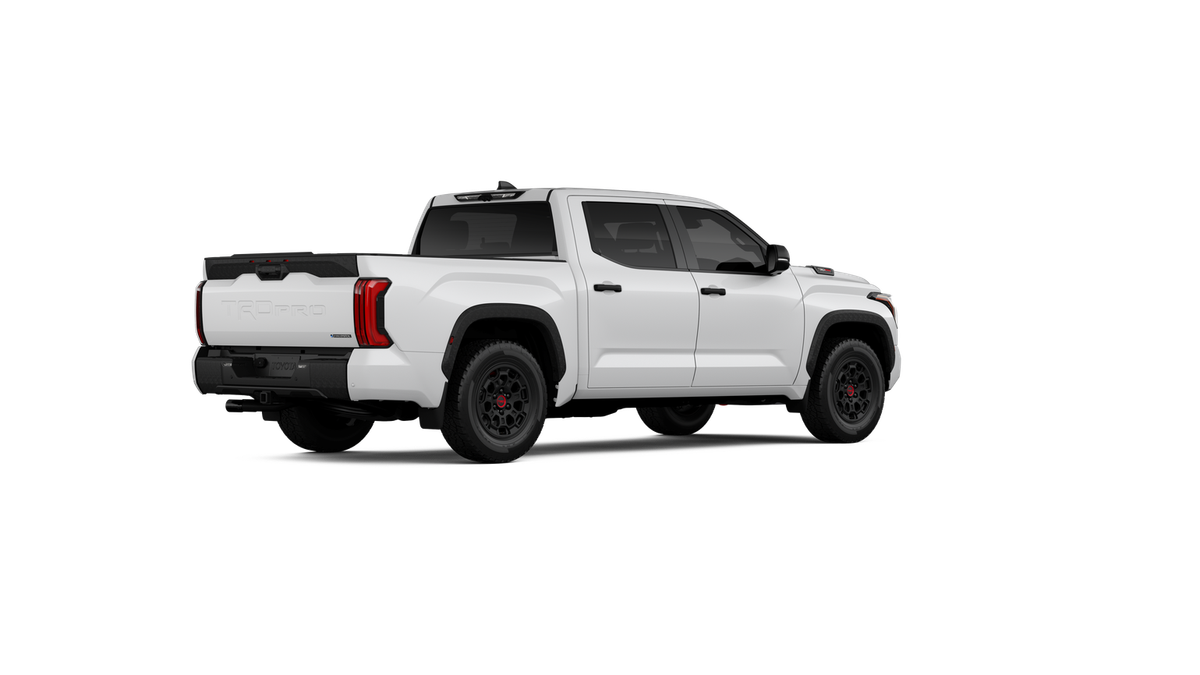

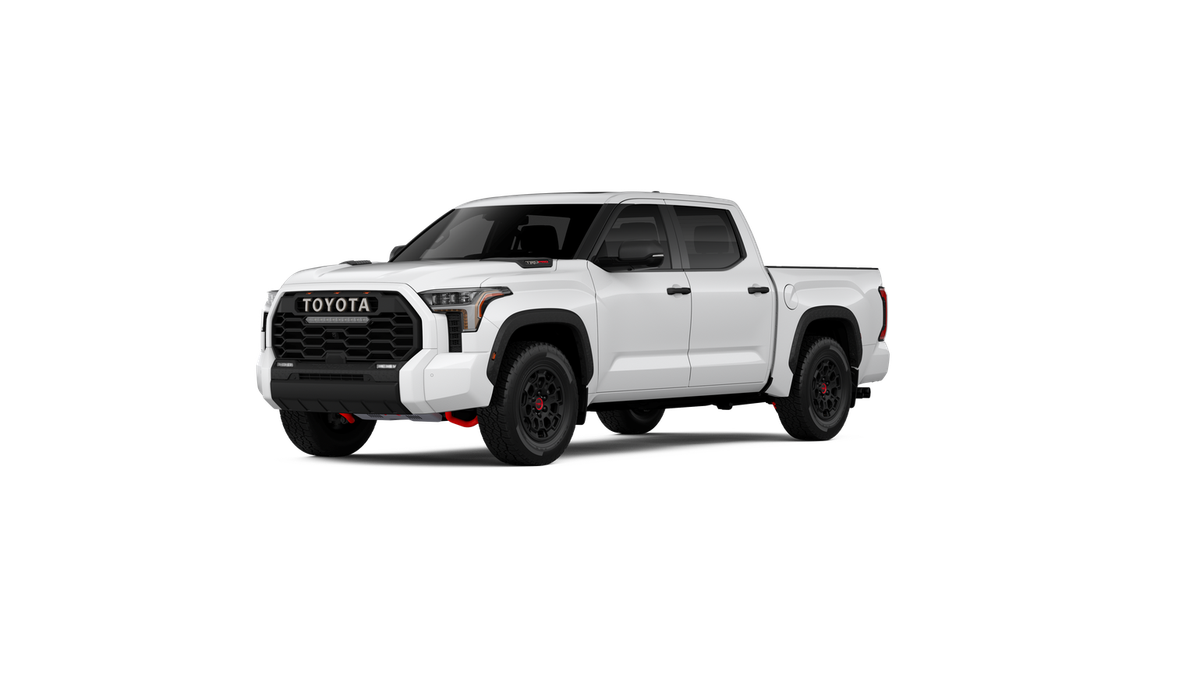

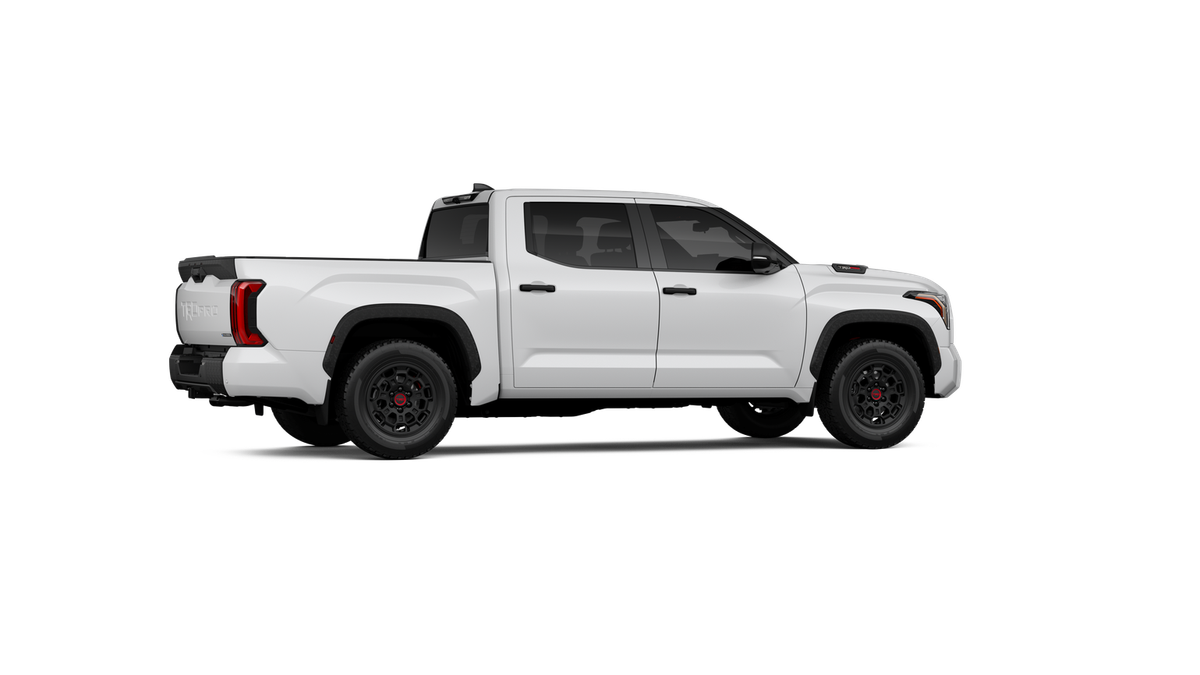

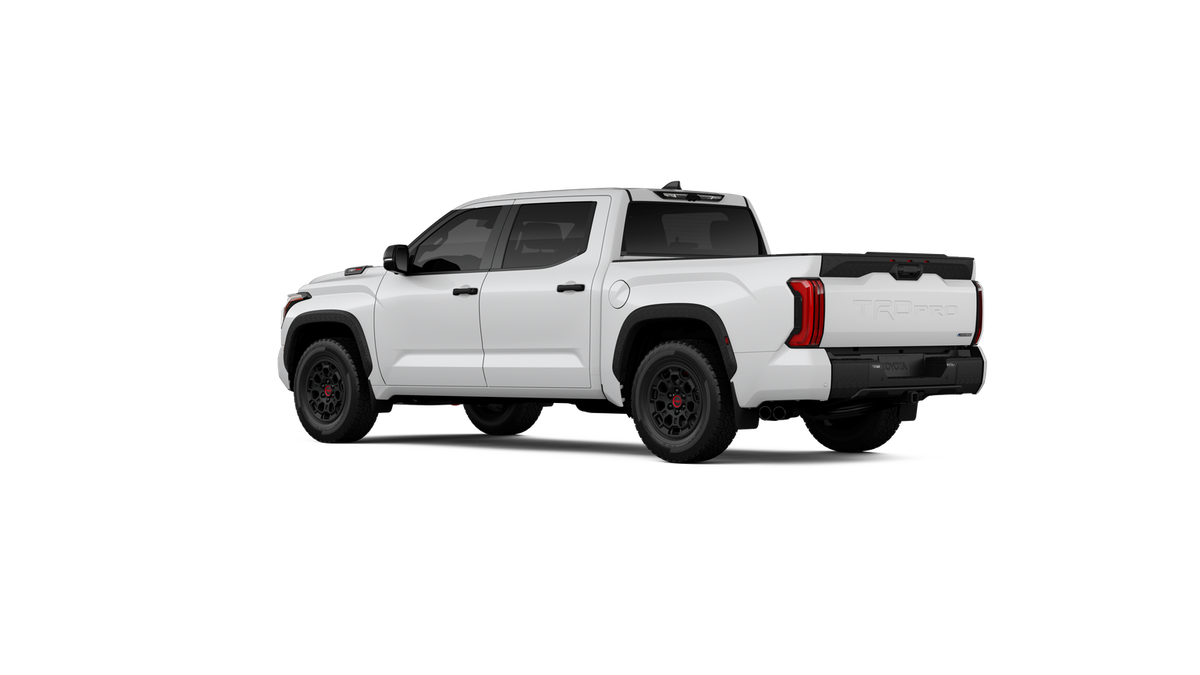

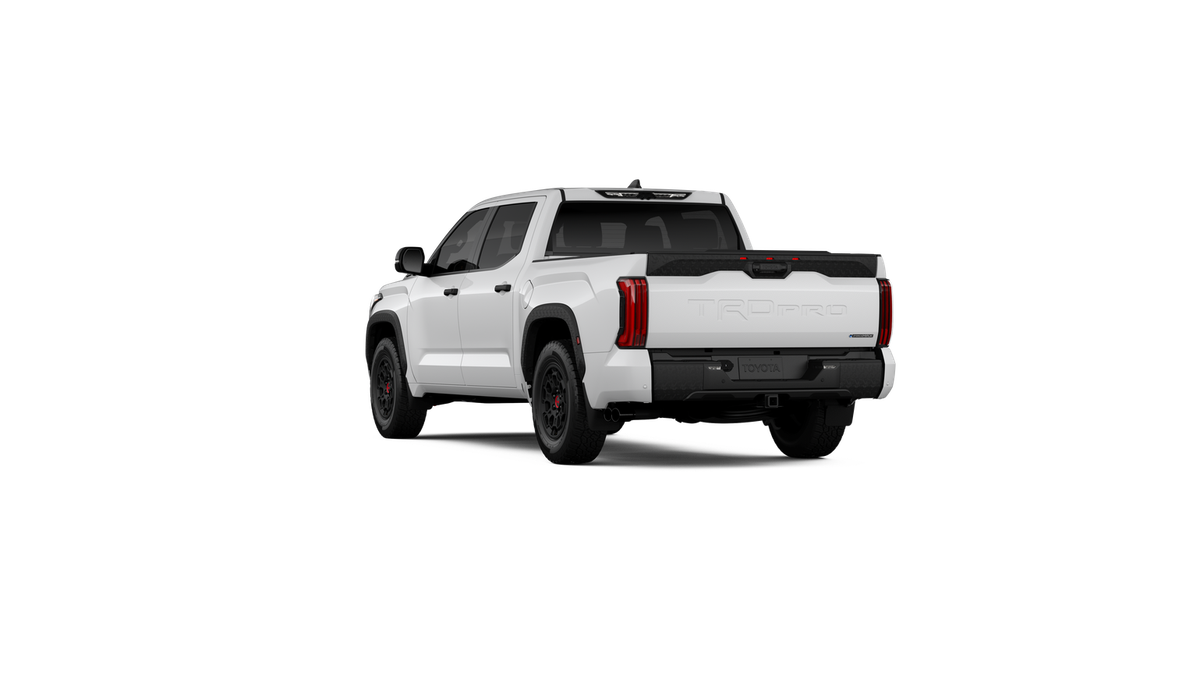

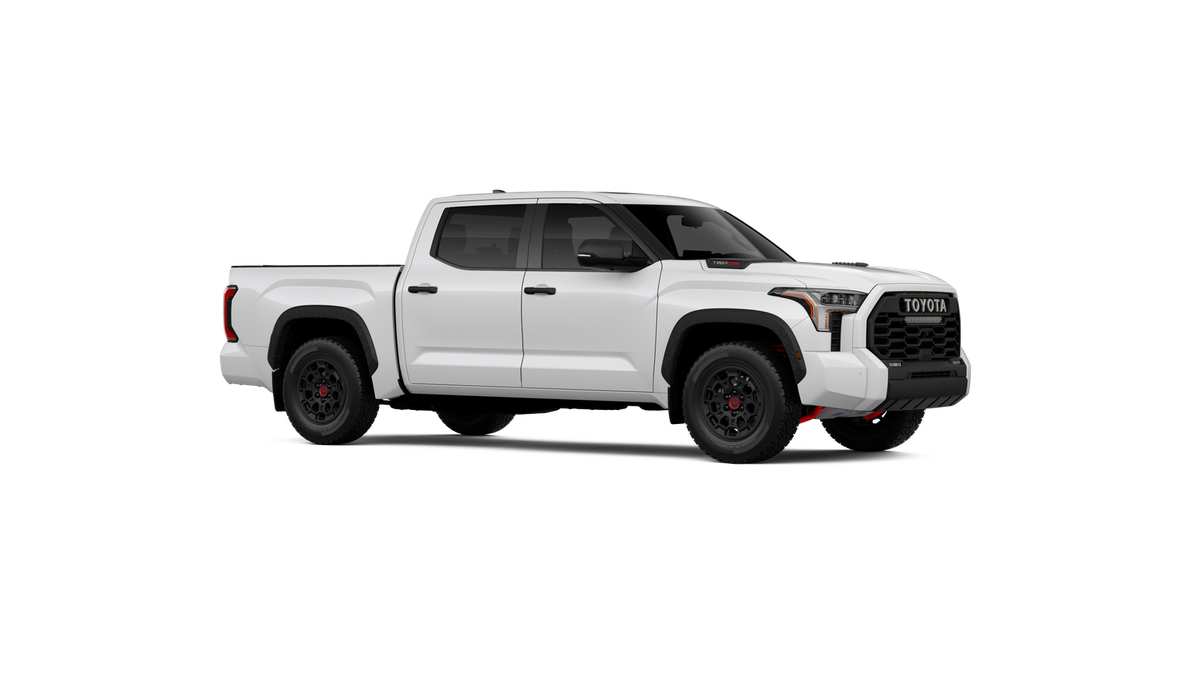

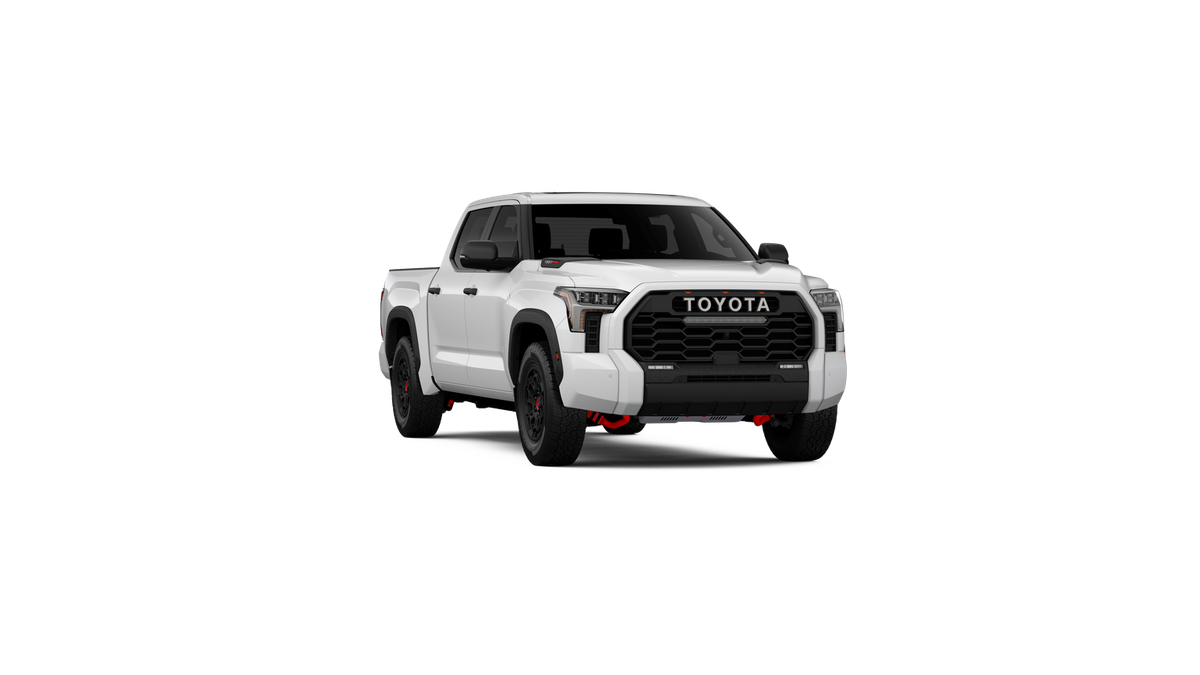

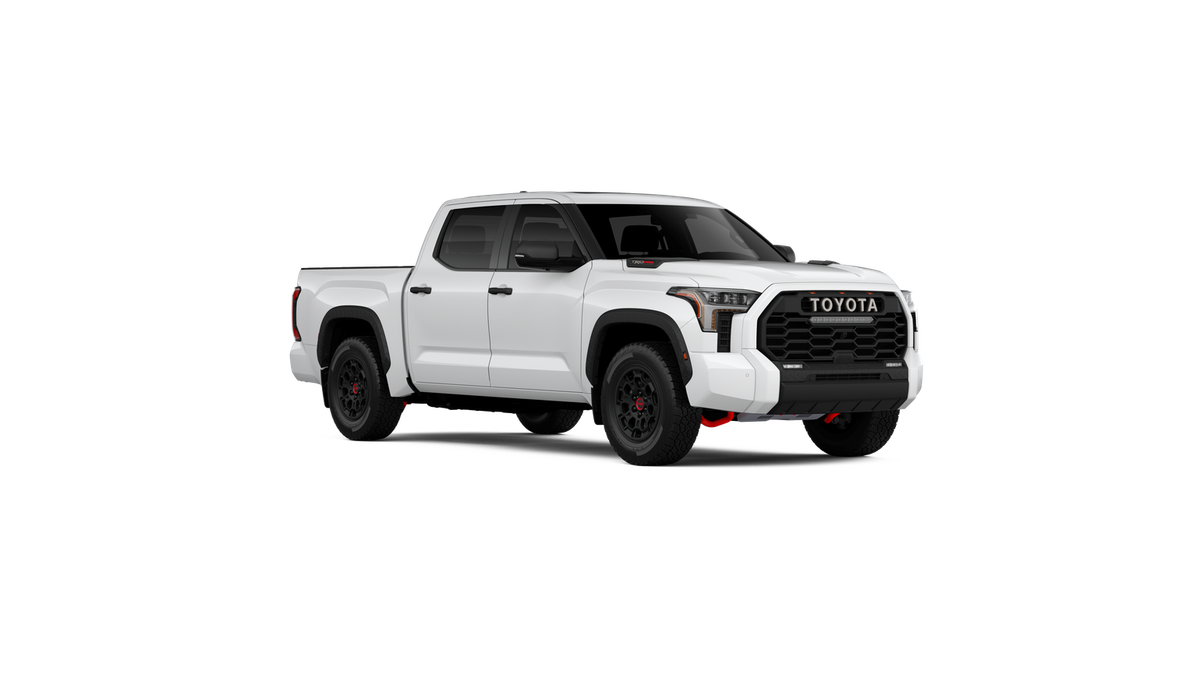

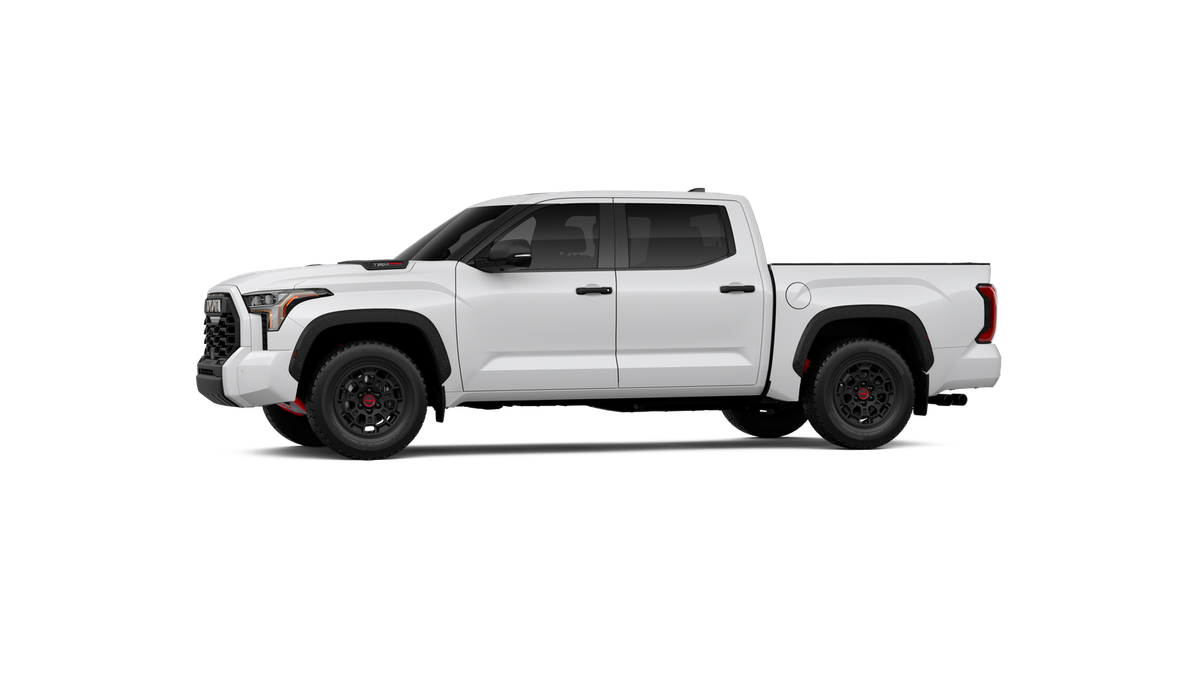

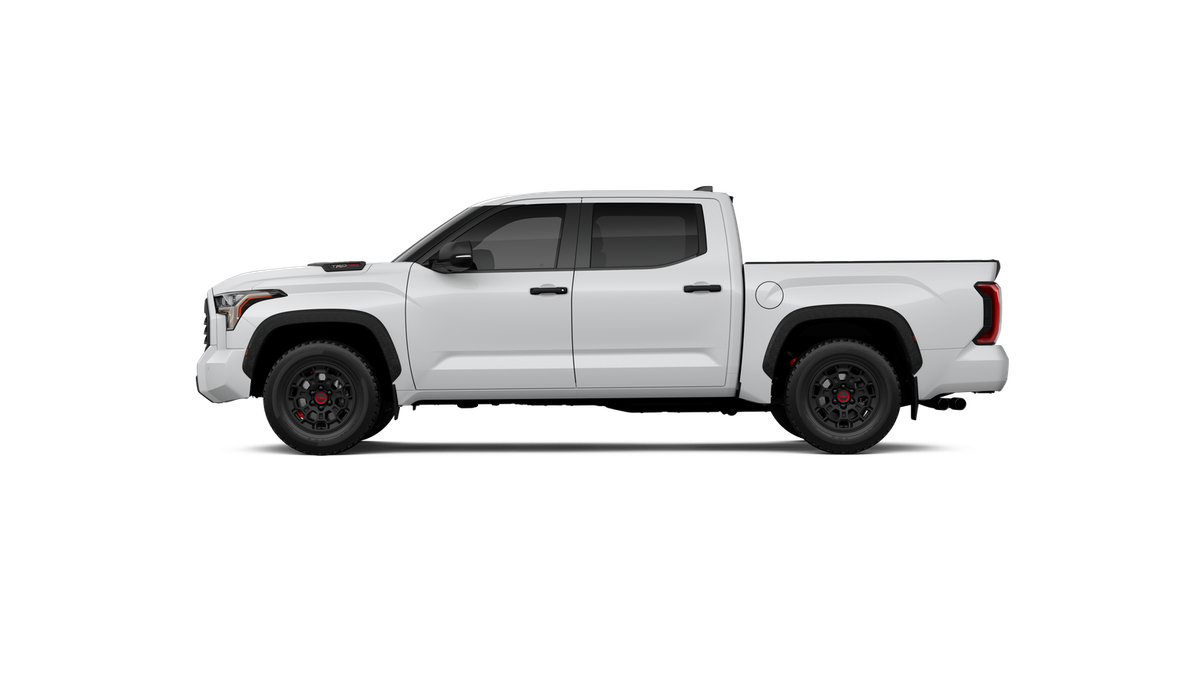

• Vehicle Name: Toyota Tundra 4WD
• Body Style: CrewMax
• Body Code: T
